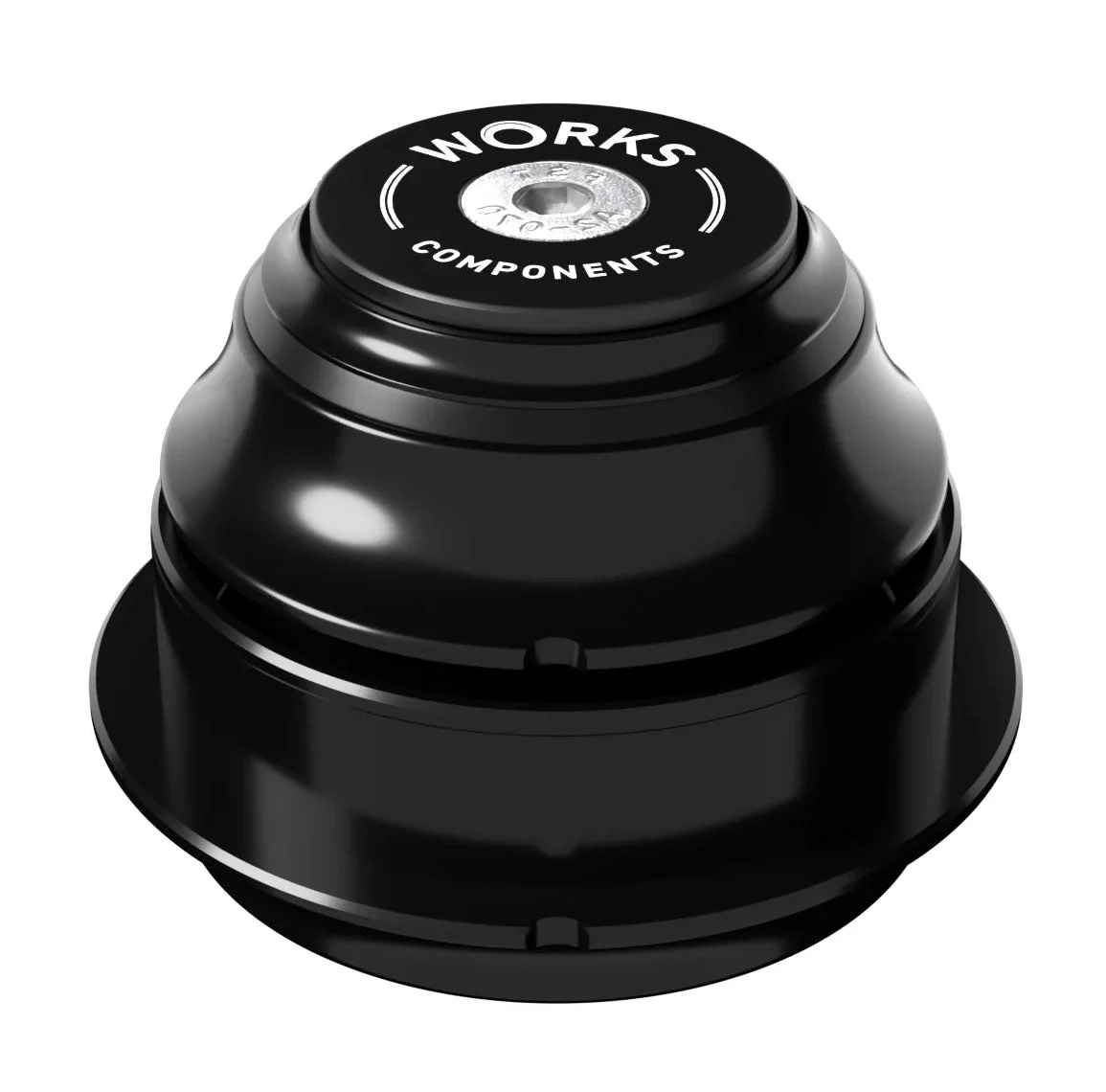

Works Components 5mm Reach Adjust Headset - EC44|EC56

Reach adjust headset offering +/-5mm adjustment. Designed for frames with a 44mm upper and 56mm lower internal headtube using a tapered (1 1/8" to 1 1/2") steerer tube. CNC-machined in-house in the UK from 6082-T6 aluminium and finished with a durable anodise finish.

Headset comes complete with top-cap (starnut included), bearings and crown race - all parts required for fitment.

This headset only adjusts the reach, and does not adjust your head angle.

Model	Reach Adjust Headset
S.H.I.S.	EC44/28.6 / EC56/40
Stack	15mm/14mm
Reach	+/- 5mm
Headtube Internal Diameter	Upper: 44mm (EC44) / Lower: 56mm (EC56)
Cup Insertion Depth	Upper: 9mm / Lower: 14mm
Upper Bearing	41mm OD, 45 x 45° AC sealed bearing
Lower Bearing	52mm OD, 45 x 45° AC sealed bearing
Fork Steerer Tube Size	Tapered (1 1/8" to 1 1/2")
Material	6082-T6 Aluminium
Finish	Anodized
Color	Black
