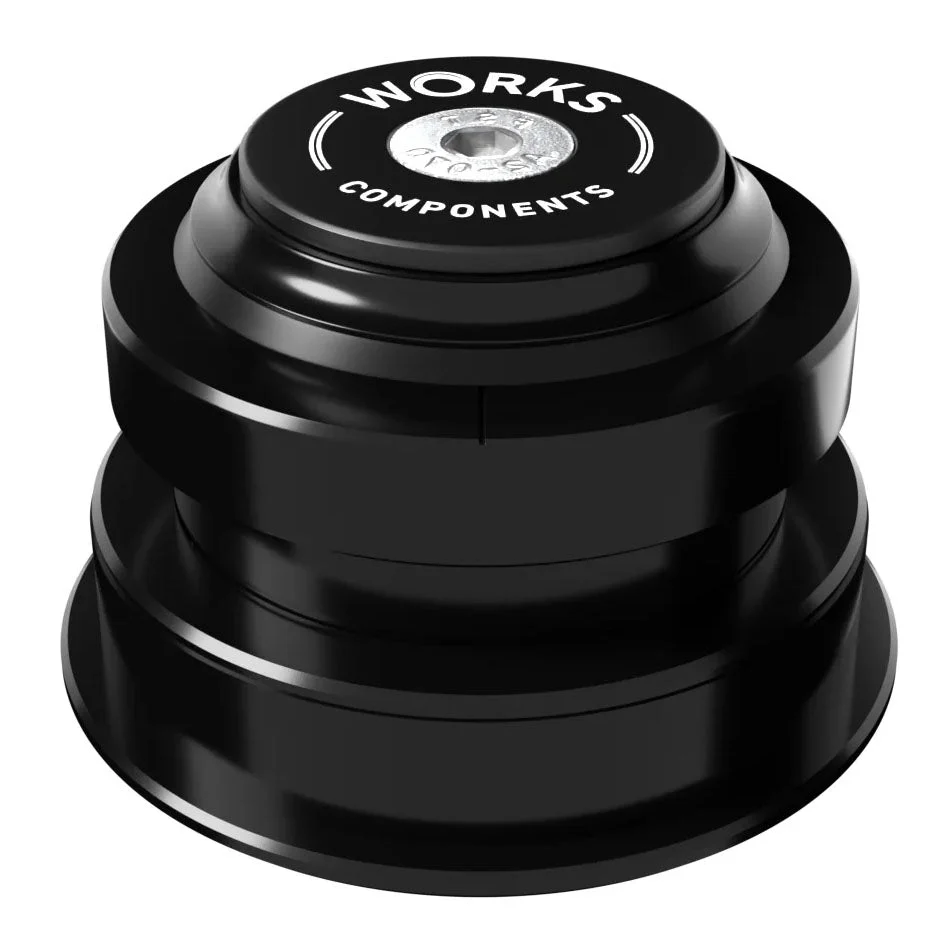

Works Components 1° Angle Headset - EC44|ZS56 - 140-149mm HT
Works Components 1.0° angle-adjust headset with EC44 upper and ZS56 lower cups for tapered steerer tubes and head tubes between 140mm and 149mm in length. CNC-machined in the UK from 6082-T6 aluminum with sealed bearings. Allows + or - geometry adjustment. Fits frames with 44mm upper external and 56mm lower internal head tubes. Tapered steerer tube compatible (1 1/8" to 1 1/2") or with 1 1/8” fork with a reducer crown race.
Works Components Angled Headsets Explained
- Adjusts the bike’s headtube angle by 1.0 degree
- 1.0 degree headset will lengthen a bikes wheelbase by around 10mm, and lower the bottom bracket by 2mm
- Due to angled nature, headsets are headtube length specific
- Precision CNC-machined from 6082-T6 aluminum and anodized in the UK
- Includes top-cap, star nut, bearings and crown race
- TECH SPECS
| Model | 1.0 Degree Angle Headset |
| S.H.I.S. | EC44/28.6 / ZS56/40 |
| Stack | 16mm/2.5mm |
| Headtube Length | 140-149mm |
| Color | Black |
| Weight | - |
