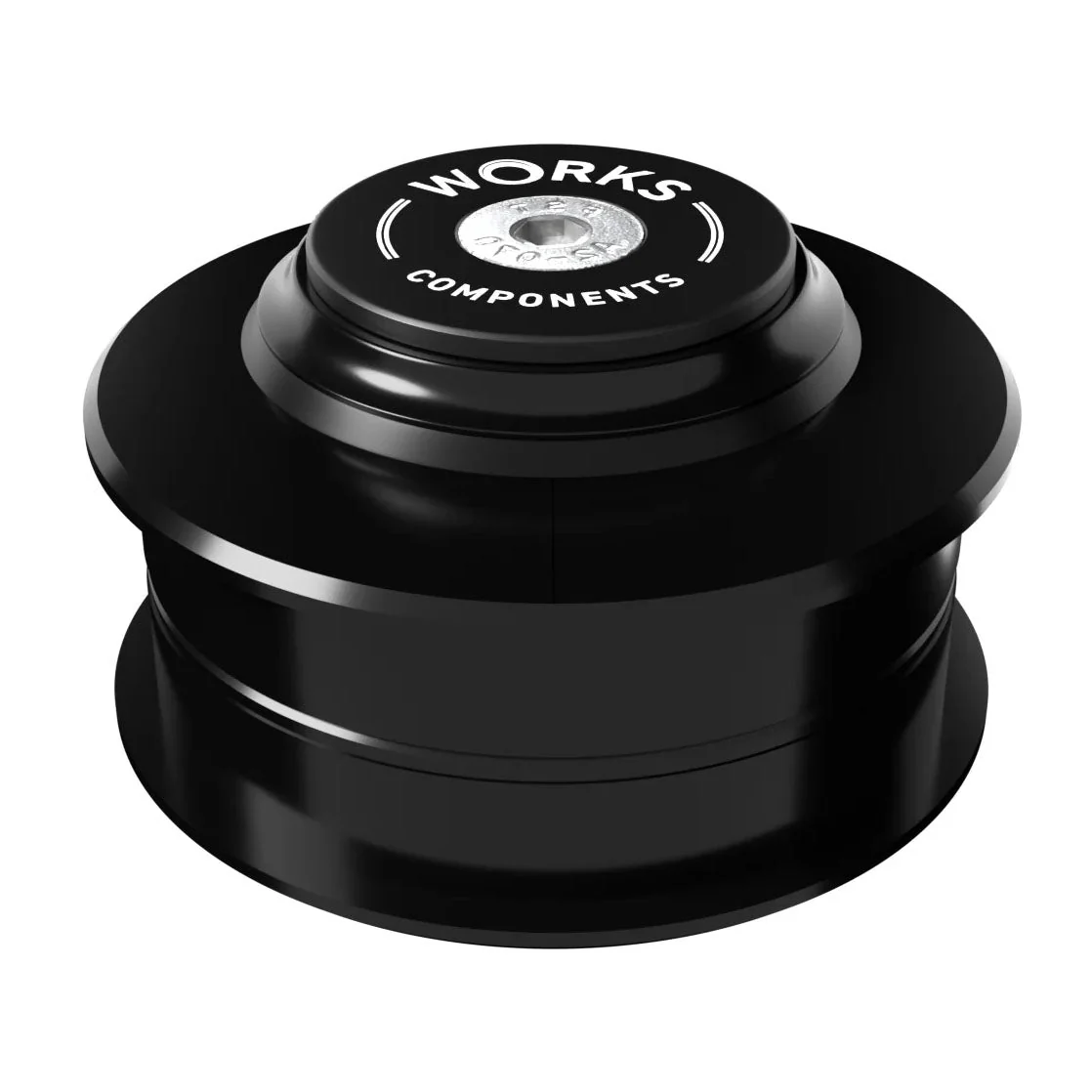

Works Components 1.5° Angle Headset - ZS56|ZS56 - 110-119mm HT

Works Components 1.5° angle-adjust headset with ZS56 upper and ZS56 lower cups for tapered steerer tubes and head tube lengths between 110mm and 119mm. CNC-machined in the UK from 6082-T6 aluminum with sealed bearings. Allows + or - geometry adjustment. Fits frames with 56mm upper and 56mm lower internal head tubes. Tapered steerer tube compatible (1 1/8" to 1 1/2") or with 1 1/8” fork with a reducer crown race. Ideal for trail, enduro, E-bike and downhill bikes.

• Adjusts the bike’s head tube angle by 1.5 degree
• Due to angled nature, headsets are head tube length specific. This headset fits head tubes between 110mm and 119mm in length
• Precision CNC-machined from 6082-T6 aluminum and anodized in the UK
• Includes top-cap, star nut, bearings and crown race

Model	1.5 Degree Angle Headset
S.H.I.S.	ZS56/28.6 / ZS56/40
Stack	8mm/3mm
Angle	1.5°
Head tube Length	110-119mm
Head tube Internal Diameter	Upper: 56mm (ZS56) / Lower: 56mm (ZS56)
Cup Insertion Depth	Upper: 11.5mm / Lower: 11.5mm
Upper Bearing	41mm OD, 45 x 45° AC sealed bearing
Lower Bearing	52mm OD, 45 x 45° AC sealed bearing
Color	Black
